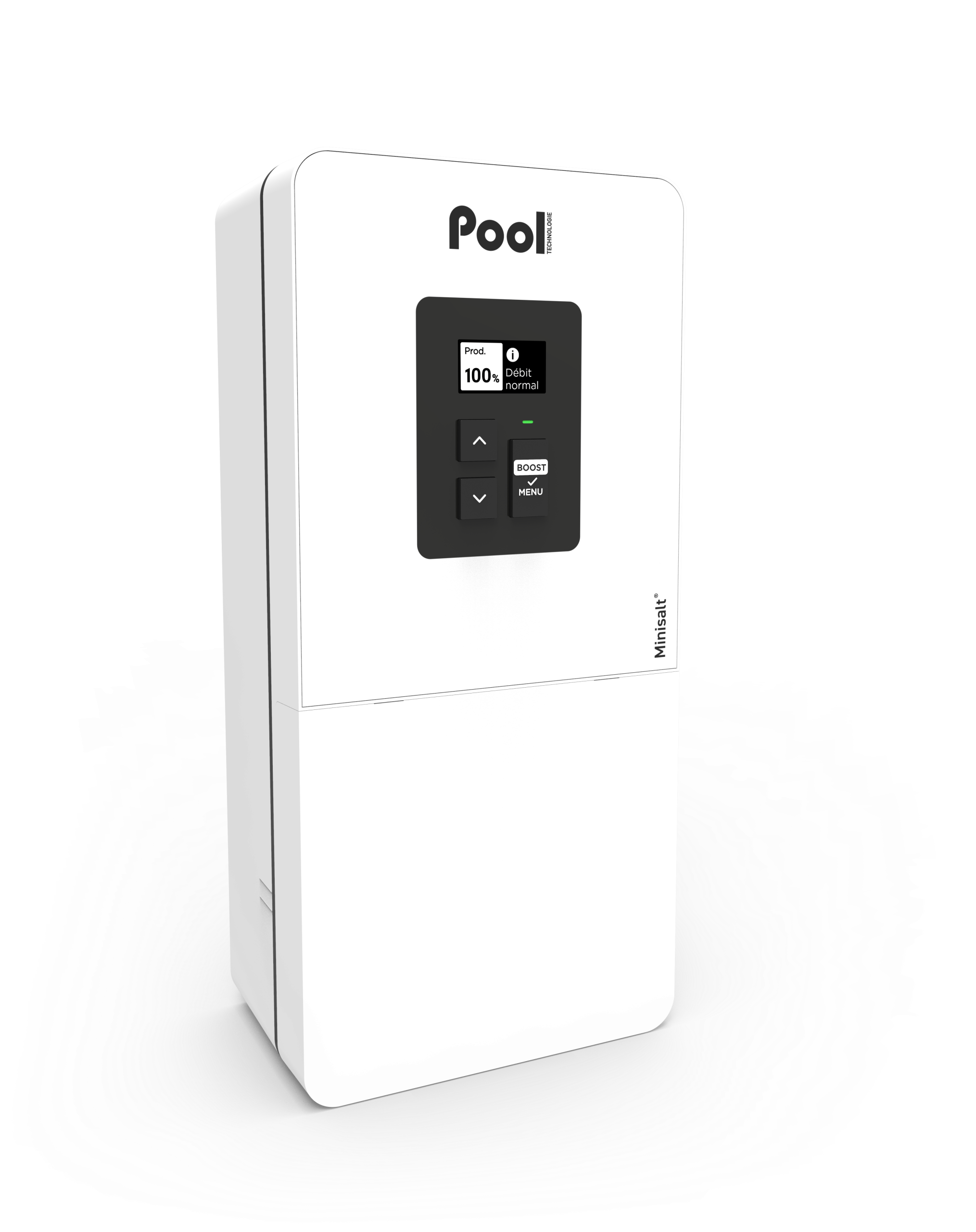

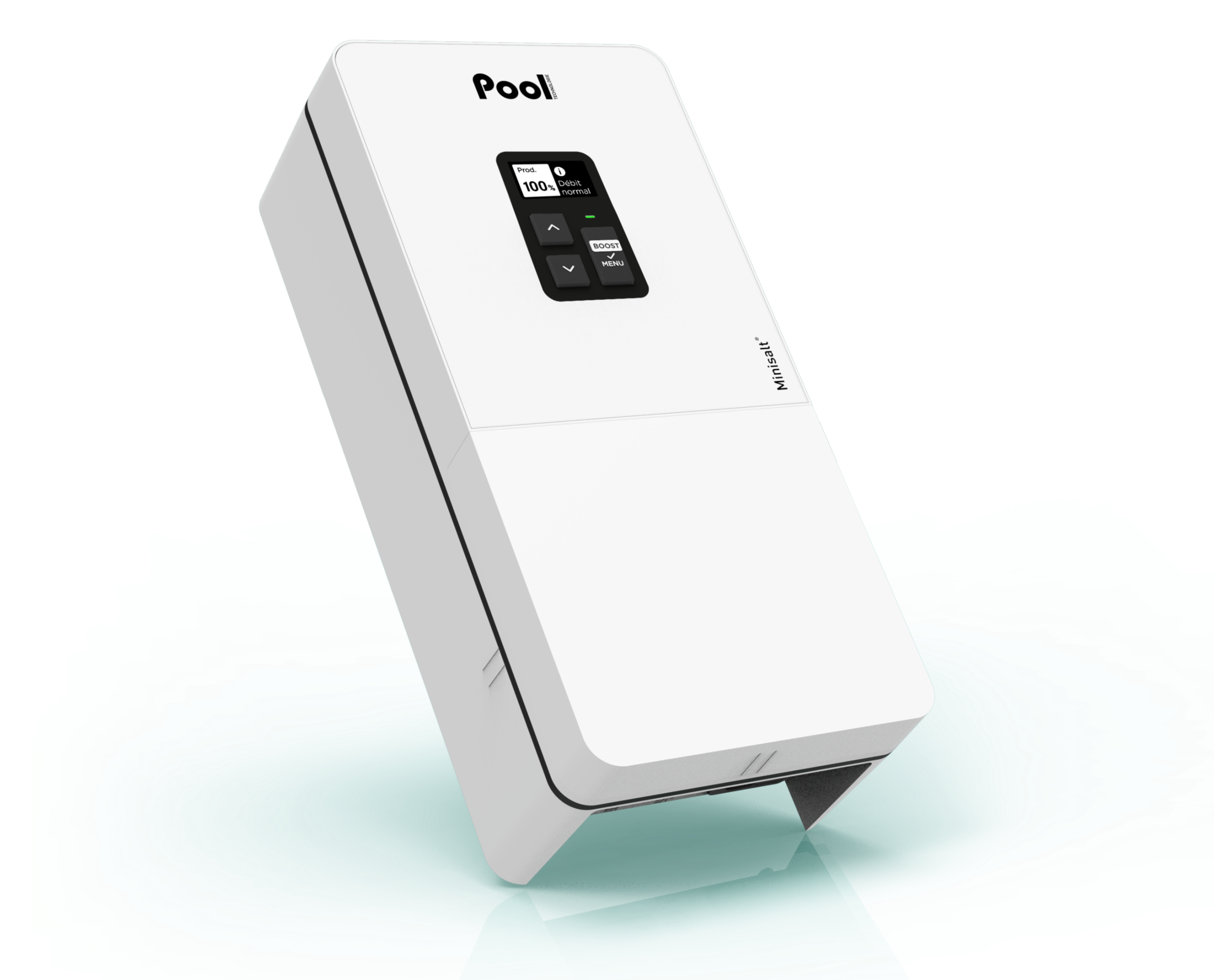

Minisalt®
Saltwater chlorinator
Keeping clear and healthy water is easy!
Minisalt®
Saltwater chlorinator
Keeping clear and healthy water is easy!
Minisalt®: less than 2 kg,
but it does a lot !
Minisalt® it’s:
Smart Power: current monitoring ensuring stable production
High quality self-cleaning cell by memory adjustable polarity inversion according to water hardness
Boost mode: 100% superchlorination for up to 24 hours to overcome an increased need of disinfectant
Operate at any salt level from 2,5g/l (NS) and 1,5g/l (LS) without high limit
Low mode to reduce chlorine production, when cover closed or bubble cover installed
Low Salt / Normal Salt (depending on model)
Minisalt®: less than 2 kg, but it does a lot !
Minisalt® it’s:
Smart Power: current monitoring ensuring stable production
High quality self-cleaning cell by memory adjustable polarity inversion according to water hardness
Boost mode: 100% superchlorination for up to 24 hours to overcome an increased need of disinfectant
Operate at any salt level from 2,5g/l (NS) and 1,5g/l (LS) without high limit
Low mode to reduce chlorine production, when cover closed or bubble cover installed
Low Salt / Normal Salt (depending on model)
Cutting-edge technology
Electronic board with powerful processor
Switching power supply for better efficiency
Boosted storage memory for instant response
Optimized heat dissipation for energy savings
Cutting-edge technology
Electronic board with powerful processor
Switching power supply for better efficiency
Boosted storage memory for instant response
Optimized heat dissipation for energy savings

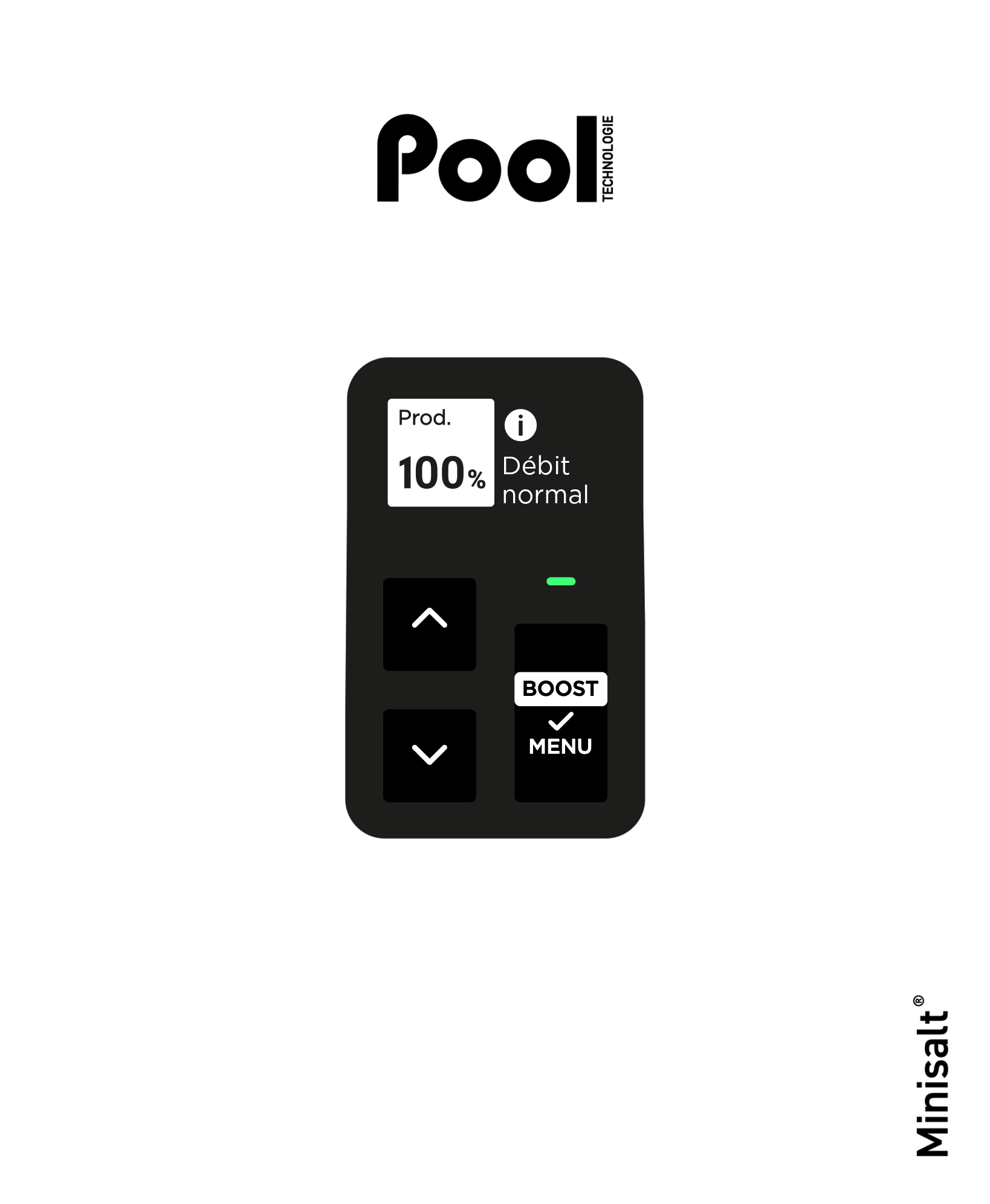

User-friendly interface!
Intuitive navigation on Led display
Permanent display of chlorine production rate
Light warning alarm
Soft touch keyboard with quick access keys for easy operation
So many reasons to adopt Minisalt®!
User-friendly interface!
Intuitive navigation on Led display
Permanent display of chlorine production rate
Light warning alarm
Soft touch keyboard with quick access keys for easy operation
So many reasons to adopt Minisalt®!
Fits anywhere, never rests!
Unique design and new user experience
Light and compact, can be installed in cramped technical rooms

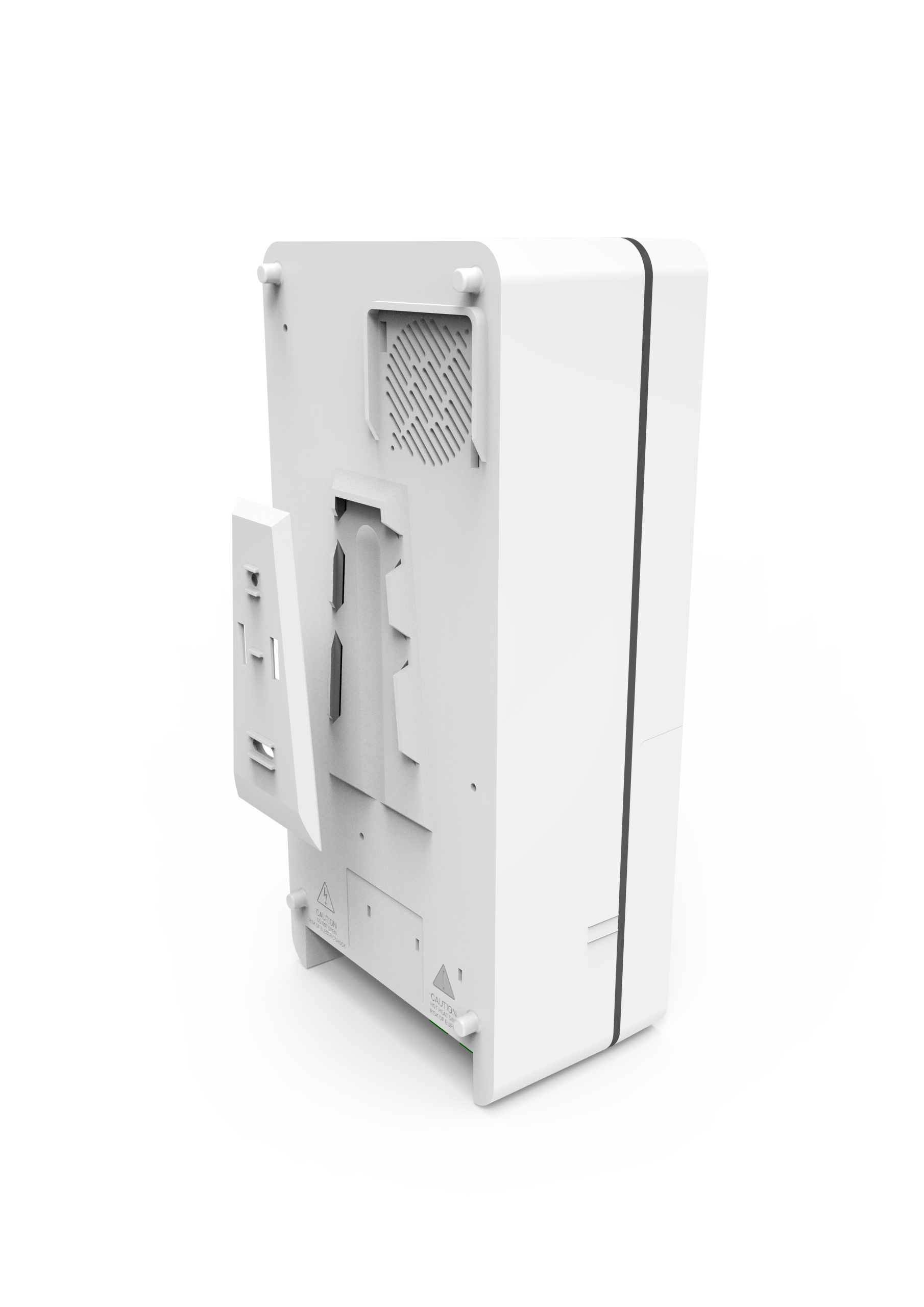

Wall mounting Easy Fix for easy instalation
Fully pluggable connections for an optimised grip
One of the lightest chlorinator on the market
Easy Clip system for a tool-free opening
Improved sealing
Fits anywhere, never rests!
Unique design and new user experience
Light and compact, can be installed in cramped technical rooms
Wall mounting Easy Fix for easy instalation
Fully pluggable connections for an optimised grip
One of the lightest chlorinator on the market
Easy Clip system for a tool-free opening
Improved sealing
Exclusive on the market! One device, two chlorine production modes: Low salt / Normal Salt
Eco-friendly innovation
Cost effective solution: Requires 3 times less salt in your pool
Recommended for corrosion-sensitive basins and equipment protection
More bathing comfort: water 15 times less salty than sea water!
Exclusive on the market! One device, two chlorine production modes: Low salt / Normal Salt
Eco-friendly innovation
Cost effective solution: Requires 3 times less salt in your pool
Recommended for corrosion-sensitive basins and equipment protection
More bathing comfort: water 15 times less salty than sea water!
Content
- Control box

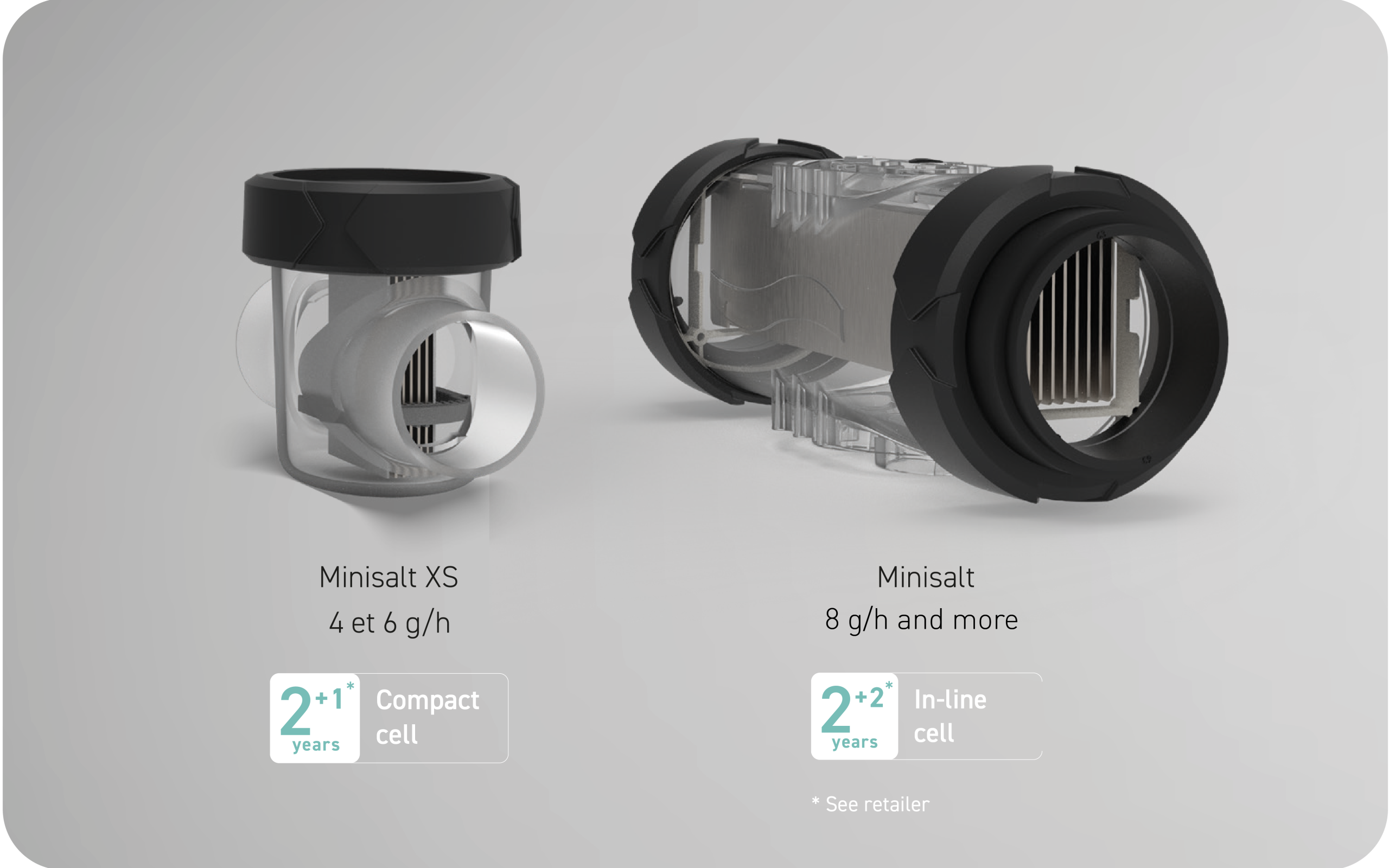

- Chlorination cell
- Cell cable (2 m)
- Power cable(2 m)
- Collar diam 63mm x2 (50mm <80m³ models)
- Reducer 63/50mm x2
- Wall support (with screws)
- User manual
Options
- Independent flow switch
- Pool Terre grounding kit
Content
- Control box
- Chlorination cell
- Cell cable (2 m)
- Power cable(2 m)
- Collar diam 63mm x2 (50mm <80m³ models)
- Reducer 63/50mm x2
- Wall support (with screws)
- User manual
Options
- Independent flow switch
- Pool Terre grounding kit
Technical features
| Boost mode | 24h, with memory |
| Low mode | Dry contact, dividing chlorine production by 5 |
| Polarity inversion time | Adjustement from 2h to 16h by steps of 2h |
» See more
| Assembly of the cell | in line |
| Cell orientation | horizontal or vertical |
| Cell length (mm) | 225 |
| Max cell pressure (bar) | 3 |
| Max cell flow | 22 or by pass |
| Max water temperature (°C) | 40 |
| Box weight | From 1.43 kg |
| Box dimensions (mm) | L140 x H300 x P97 |
» See less
| Models | Pool volume* (m³) | Chlorine production (g/h) | Article code |
|---|---|---|---|
| Minisalt NPS 4 | 20 | 4 | ELLY20NPSB-G0NM04 |
| Minisalt NPS 8 | 40 | 8 | ELLY20NPSB-G0NM08 |
| Minisalt NPS 12 | NS 60 | 12 | ELLY20NPSB-G0NM12 |
| Minisalt NPS 16 / LS 12 | NS 80 / LS 60 | NS16 / LS 12 | ELLY20NPSB-G0HX16 |
| Minisalt NPS 23 / LS 16 | NS 120 / LS 80 | NS 23 / LS 16 | ELLY20NPSB-G0HX23 |
| Minisalt NPS 30 / LS 23 | NS 160 / LS 120 | NS 30 / LS 23 | ELLY20NPSB-G0HX30 |
NS : normal salt / LS : low salt
*In hot climates, reduce the volume by 20%.
Technical features
| Boost mode | 24h, with memory |
| Low mode | Dry contact, dividing chlorine production by 5 |
| Polarity inversion time | Adjustement from 2h to 16h by steps of 2h |
» See more
| Assembly of the cell | in line |
| Cell orientation | horizontal or vertical |
| Cell length (mm) | 225 |
| Max cell pressure (bar) | 3 |
| Max cell flow | 22 or by pass |
| Max water temperature (°C) | 40 |
| Box weight | From 1.43 kg |
| Box dimensions (mm) | L140 x H300 x P97 |
» See less
| Models | Pool volume* (m³) | Chlorine production (g/h) | Article code |
|---|---|---|---|
| Minisalt NPS 4 | 20 | 4 | ELLY20NPSB-G0NM04 |
| Minisalt NPS 8 | 40 | 8 | ELLY20NPSB-G0NM08 |
| Minisalt NPS 12 | NS 60 | 12 | ELLY20NPSB-G0NM12 |
| Minisalt NPS 16 / LS 12 | NS 80 / LS 60 | NS16 / LS 12 | ELLY20NPSB-G0HX16 |
| Minisalt NPS 23 / LS 16 | NS 120 / LS 80 | NS 23 / LS 16 | ELLY20NPSB-G0HX23 |
| Minisalt NPS 30 / LS 23 | NS 160 / LS 120 | NS 30 / LS 23 | ELLY20NPSB-G0HX30 |
NS : normal salt / LS : low salt
*In hot climates, reduce the volume by 20%.
